First Ionization Energies

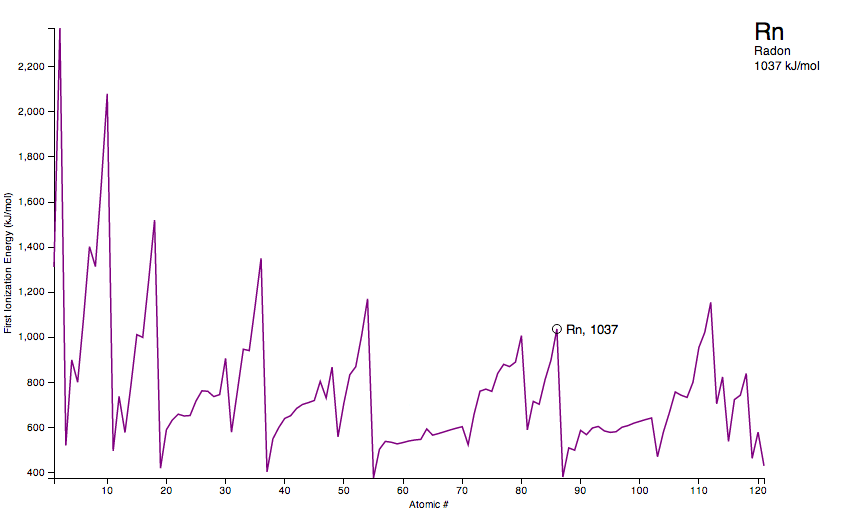

The first ionization energy is the energy required to remove one electron from an atom in its gaseous state. This energy is measured in kJ/mol. From the chart we can observe periodic trends and inconsistencies. Mouseover the chart to view individual elements.

Data

I retrieved the data from Wikipedia's Molar ionization energies of the elements article, which lists the 1st through 30th ionization energies for the applicable elements. The first ionization energy is the only one that is applicable to all the elements. I scraped the data in the browser console using jQuery already running on the page and copied the result to a JSON file.


var tds = [];

$(".wikitable.sortable.jquery-tablesorter tr").each(function(i) {
  if (i !== 0) {
    tds.push({"number": $(this).find("td")[0].innerText,
              "symbol": $(this).find("td")[1].innerText,
              "name": $(this).find("td")[2].innerText,
              "i1": $(this).find("td")[3].innerText });
  }
});

JSON.stringify(tds);

Visualization

The chart setup is standard, with the exception of a wide right margin to accomodate the mouseover text for the last few elements. The x and y scales are linear. The y axis maps the first ionization energy as a dependent factor of the atomic number on the x axis.

After requesting the data, mapping it to the x and y scales, and drawing the line, I create the mouseover components using two g elements: one for the element details in the upper right corner and one for the text that follows the line. I detect the data point that corresponds to the mouse position using a D3 bisector then add the associated text.


var margin = {top: 20, right: 80, bottom: 30, left: 50},
    width = 840 - margin.right - margin.left,
    height = 500 - margin.top - margin.bottom;

var x = d3.scale.linear()
    .range([0, width]);

var y = d3.scale.linear()
    .range([height, 0]);

var xAxis = d3.svg.axis()
    .scale(x)
    .orient("bottom");

var yAxis = d3.svg.axis()
    .scale(y)
    .orient("left");

var line = d3.svg.line()
    .x(function(d) { return x(d.number); })
    .y(function(d) { return y(d.i1); });

var svg = d3.select("svg")
    .attr("width", width + margin.left + margin.right)
    .attr("height", height + margin.top + margin.bottom)
  .append("g")
    .attr("transform", "translate(" + margin.left + "," + margin.top + ")");

d3.json("i1.json", function(error, data) {
  data.forEach(function(d) {
    d.number = +d.number;
    d.i1 = +d.i1;
    d.name = d.name.replace(/\w\S*/g, function(txt) {
      return txt.charAt(0).toUpperCase() + txt.substr(1).toLowerCase();
    });
  });

  x.domain(d3.extent(data, function(d) { return d.number; }));
  y.domain(d3.extent(data, function(d) { return d.i1; }));

  svg.append("g")
      .attr("class", "x axis")
      .attr("transform", "translate(0," + height + ")")
      .call(xAxis)
    .append("text")
      .attr("x", width / 2)
      .attr("y", 30)
      .text("Atomic #");

  svg.append("g")
      .attr("class", "y axis")
      .call(yAxis)
    .append("text")
      .attr("transform", "rotate(-90)")
      .attr("x", -height / 2 + 60)
      .attr("y", -50)
      .attr("dy", ".71em")
      .style("text-anchor", "end")
      .text("First Ionization Energy (kJ/mol)");

  svg.append("path")
      .datum(data)
      .attr("class", "line")
      .attr("d", line);

  var focus = svg.append("g")
      .attr("class", "focus")
      .style("display", "none");

  focus.append("circle")
      .attr("r", 4.5);

  focus.append("text")
      .attr("x", 9)
      .attr("dy", ".35em");

  var element = svg.append("g")
      .attr("transform", "translate(" + (width - 10) + ",0)")

  element.append("text")
      .attr("class", "symbol")
      .style("font", "24px sans-serif")
      .attr("transform", "translate(0, 12)");

  element.append("text")
      .attr("class", "name")
      .attr("transform", "translate(0, 27)")
      .style("font", "12px sans-serif");

  element.append("text")
      .attr("class", "i1")
      .attr("transform", "translate(0, 42)")
      .style("font", "12px sans-serif");

  svg.append("rect")
      .attr("class", "overlay")
      .attr("width", width)
      .attr("height", height)
      .on("mouseover", function() { focus.style("display", null); element.style("display", null); })
      .on("mouseout", function() { focus.style("display", "none"); element.style("display", "none"); })
      .on("mousemove", mousemove);

  function mousemove() {
    var bisect = d3.bisector(function(d) { return d.number }).left,
        x0 = x.invert(d3.mouse(this)[0]),
        i = bisect(data, x0, 1),
        d0 = data[i - 1],
        d1 = data[i];
        d = x0 - d0.number > d1.number - x0 ? d1 : d0;

    focus.attr("transform", "translate(" + x(d.number) + "," + y(d.i1) + ")");
    focus.select("text").text(d.symbol + ", " + d.i1);

    element.select(".symbol").text(d.symbol);
    element.select(".name").text(d.name);
    element.select(".i1").text(d.i1 + " kJ/mol");
  }
});
